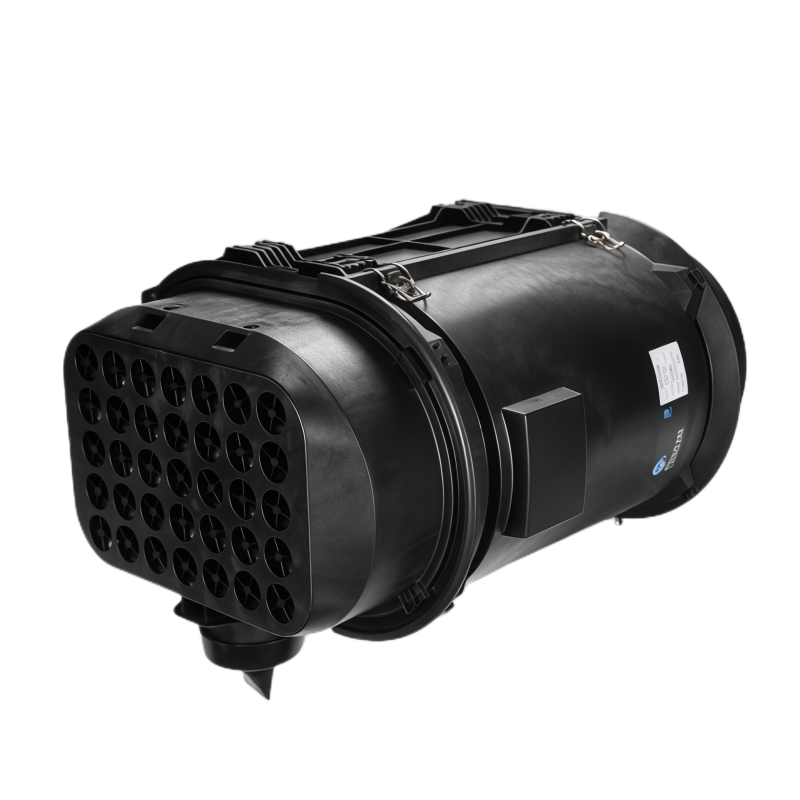

Description
Filter inside:
External filter,Standard version P641182
External filter,Blue version DBA9336
Internal filter P607557
Cross Reference
CASE CASE IH N102088
DONALDSON D120038
FRESIA 97406
KOHLER GM66745
OSHKOSH 3819531 / 3819531DX1
SANDVIK 64613685/ EN9621
SIEMENS A2V00001837624
Parameter
Outlet Diameter: 152.4 mm (6 inch)
Overall Length: 596 mm (23.46 inch)
Body Length: 361.9 mm (14.25 inch)
Rated Flow LR: 19.3 m³/min (682 cfm)
Rated Flow MR: 22.5 m³/min (795 cfm)
Rated Flow HR: 25.3 m³/min (893 cfm)
Restriction: LR: 14.95 mbar (6 inch H2O)
Restriction: MR: 19.93 mbar (8 inch H2O)
Restriction: HR: 24.91 mbar (10 inch H2O)
Family: PSD
Media Brand: PowerCore®
Packaged Dimensions
Packaged Length: 2.20 FT
Packaged Width: 1.49 FT
Packaged Height: 1.48 FT
Packaged Weight: 9.67 kg (21.29 lb)
Packaged Volume: 0.14 m3 (4.84 ft3)
