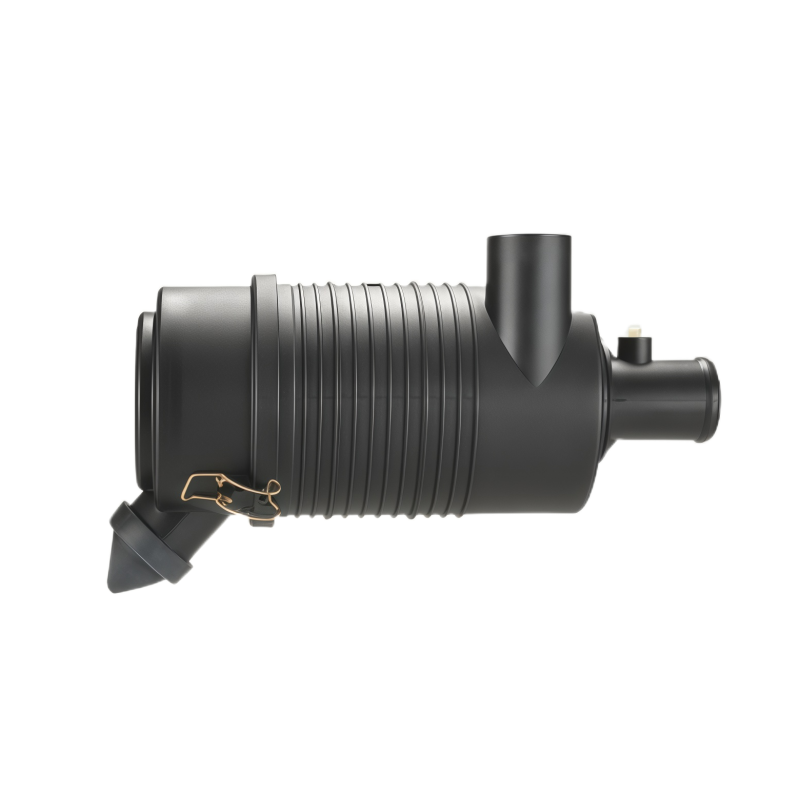

Description
Filter inside:
External filter R005675
Internal filter R005680
Filter kit X012191=R005675+R005680
Cross Reference
ADVANCE MACHINE 56412316
ALLMAND BROS MA385AC
CATERPILLAR 1402469
CATERPILLAR 2483134
CLARKE 72404083
DIAMOND 2500985
DITCH WITCH 194035
FLEETGUARD AH19084
HIFI FILTER SAH01C05ADP004
KUBOTA 330873669A
NILFISK ADVANCE INCORPORATED 56412316
NILFISK ADVANCE INCORPORATED 72404083
PERKINS 33500585
PRINCETON DELIVERY SYSTEMS 505138
TELEDYNE 505138
THOMAS 046362
VERMEER 260902001
Parameter
Outlet Diameter: 50.8 mm (2.00 inch)
Inlet Diameter: 50.8 mm (2.00 inch)
Body Diameter: Maximum 146 mm (5.75 inch)
Length: 378 mm (14.88 inch)
Body Length: 278.3 mm (10.96 inch)
Rated Flow LR: 1.8 m³/min (64 cfm)
Rated Flow MR: 2.3 m³/min (81 cfm)
Rated Flow HR: 2.6 m³/min (92 cfm)
Restriction: LR: 14.91 mbar (5.98 inch H2O)
Restriction: MR: 19.91 mbar (7.99 inch H2O)
Restriction: HR: 24.91 mbar (10 inch H2O)
Style: Radialseal
Family: FPG
Packaged Dimensions
Packaged Length: 108.97 cm (42.90 inch)
Packaged Width: 108.97 cm (42.90 inch)
Packaged Height: 180.77 cm (71.17 inch)
