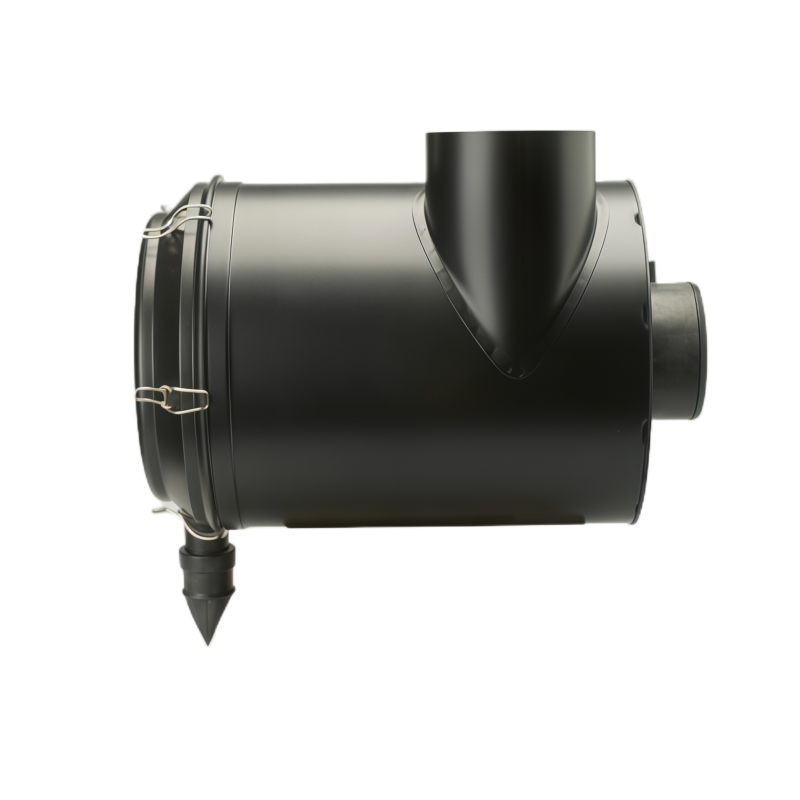

Description
Filter inside:
Standard version External filter P777868
Internal filter P777869
Filter kit X770629=P777868+P777869
Cross Reference
AG CHEM EQUIPMENT 122214
AGCO AG122214
ATLAS COPCO 1615804900
ATLAS COPCO 3222188159
BLOUNT 10057638
BOSS INDUSTRIES 305583
CASE/CASE IH 76049605
CASE/CASE IH P6150581
CATERPILLAR 10057638
CATERPILLAR 1420329
CEDARAPIDS 4569000134
CMI 004013461000
COMPAIR 13368474
CRANE CARRIER 102A0272
CUMMINS 10000632
CUMMINS CDD000120
CURTIS TOLEDO RN24085
DENYO Y0602046589
DETROIT DIESEL DG150092
EIMCO 02950418
ENGINES INC 1
ENMTP CPG 5613195
ENMTP CPG 561319503
FIAT 76049605
FORD OTOSAN 7C469600AB
FRANKLIN 1514052
FURUKAWA 38902111200
GENERAC 0A9026
GENERAC A9026
GROVE 7304000649
GROVE A108440
HIFI FILTER SAH01C15ADH003
HOIST LIFTTRUCK MANUFACTURING M15878
HURRICANE COMPRESSOR 62766
INGERSOLL RAND 2657921959
INGERSOLL RAND 57921959
IVECO 97166007
IVECO G150092930610
JCB 333T1149
KALMAR 9209690024
KALMAR EP0002744
KOHLER EX65177
KRONE 9386600
LIEBHERR 5613195
LIEBHERR 561319503
LINK BELT E9A0785
LINK BELT M2H0004
LOESING 020667
LOESING 20667
MANITOWOC 7304000649
MANITOWOC A108440
MI JACK 43950003
MI JACK 43950004
MI JACK F25621500003
MORBARK 29321328
NACCO MATERIALS 1456343
NATIONAL OILWELL ZNIPI10
ORENSTEIN & KOPPEL 2426659
OTTAWA TRUCK 9209690024
PERKINS 13000503
PETTIBONE LL847459
QUINCY COMPRESSOR 22864018
QUINCY COMPRESSOR 2286418
SANDVIK 55084696
SPARTAN MOTORS 1230HH2001
SPARTAN MOTORS FRG150092
SULLAIR 02250131679
SULLAIR 2250131679
TAMROCK 02950418
TAMROCK 04710009
TAMROCK 0471000955009422
TAMROCK 4710009
TAMROCK 471000955009422
TAMROCK 502852
TAMROCK 55009422
TEREX 15254860
TEREX P6150581
TIMBERJACK F121903
TORQUIP 15254860
WEICHAI 1001137045
ZOOMLION 1010500018
Parameter
Outlet Diameter: 152 mm (5.98 inch)
Inlet Diameter: 178 mm (7.01 inch)
Body Diameter: Maximum 381 mm (15.00 inch)
Overall Length: 600 mm (23.62 inch)
Body Length: 446.5 mm (17.58 inch)
Rated Flow LR: 20.2 m³/min (713 cfm)
Rated Flow MR: 22.8 m³/min (805 cfm)
Rated Flow HR: 26.7 m³/min (943 cfm)
Restriction: LR: 14.91 mbar (5.98 inch H2O)
Restriction: MR: 19.91 mbar (7.99 inch H2O)
Restriction: HR: 24.91 mbar (10 inch H2O)
Style: Radialseal
Family: FRG
Brand: RadialSeal™
Packaged Dimensions
Packaged Length: 53.01 cm (20.87 inch)
Packaged Width: 48.01 cm (18.90 inch)
Packaged Height: 65.00 cm (25.59 inch)
Packaged Weight: 14.06 kg (31.00 lb)
Packaged Volume: 0.16 m3 (5.84 ft3)
