Description
Cross Reference
HIFI FILTER CPC012P103D002
WIX 24172
WIX 524172 ,542172
Parameter
Height: 287.53 mm (11.32 inch)
Body Diameter: Maximum 287.1 mm (11.30 inch)
Outlet ID 103.12 mm (4.06 inch)
Efficiency 85
Efficiency Test Std: ISO 5011, SAE J726
Rated Flow LR: 12.7 m³/min (448 cfm)
Rated Flow HR: 22.6 m³/min (798 cfm)
Restriction: LR: 2.45 mbar (0.98 inch H2O)
Restriction: HR: 7.45 mbar (2.99 inch H2O)

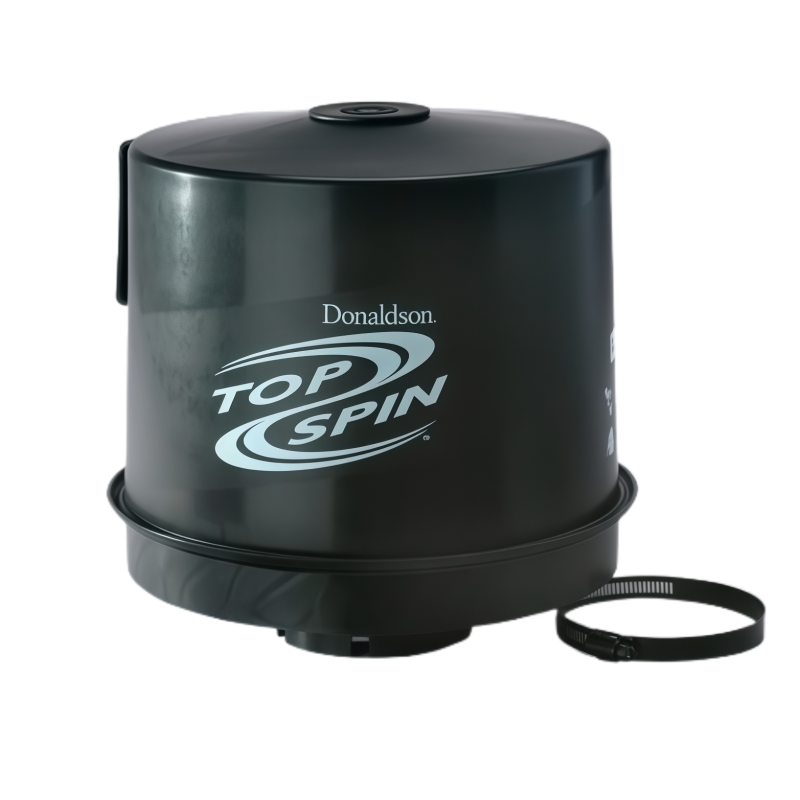

Brand: TopSpin™ HD
Packaged Dimensions
Packaged Length: 30.78 cm (12.12 inch)
Packaged Width: 30.23 cm (11.90 inch)
Packaged Height: 31.11 cm (12.25 inch)
Packaged Weight: 1.49 kg (3.28 lb)
Packaged Volume: 0.03 m3 (1.02 ft3)
