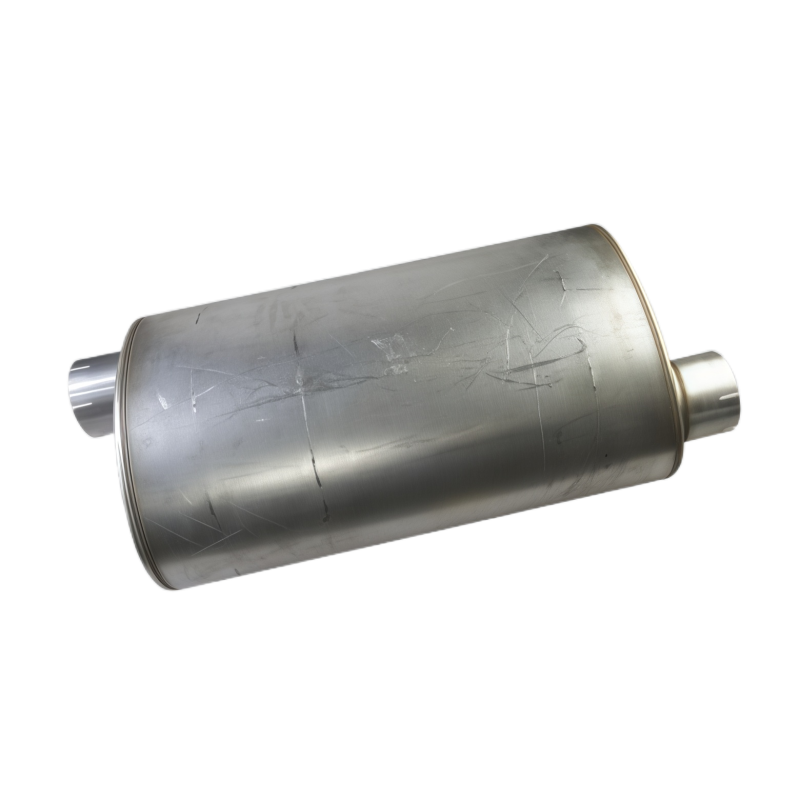

Description
Cross Reference
A P PARTS 3649
A P PARTS 3649Q
ALSTHOM 41B590490P1
ASTEC UNDERGROUND 3014051362
ATLAS COPCO 1615793200
CATERPILLAR 1G8122
CLARK 1517516
CMI 004013287000
CMI 4013287000
CMI 413287
COMPAIR 26950440
DRESSER PB1481
DRILTECH 89487
EIMCO 69008774
EIMCO D2NM0M170101
GENERAL ELECTRIC 41B590490P1
GRADALL 202SPT063
HAVAM HD4095
HEAVY DUTY MFG 31209
INGERSOLL RAND 23207269
INGERSOLL RAND 52266152
INGERSOLL RAND 56936396
INTERNATIONAL DCM170101
JOY 519020014
JOY 51910214
KOEHRING 420V6300
KOMATSU 26950440
KOMATSU PB1481
MACK 2ME235
OSHKOSH 10038G
PEERLESS PUMP 2683331000
PEERLESS PUMP 2690019
RAYGO 1G8122
RAYGO 2370035
RIMPULL 225029
SEAGRAVE P3421291
SPARTAN MOTORS 0644LL1001
SULLAIR 405094
TEREX 09079368
TEREX 26950440
TEREX 9079368
UNIT RIG EQUIPMENT 51503
UNITED CENTRAL INDUSTRIAL SUPP 911613
VOLVO 2512224
VOLVO M2512224
WABCO PB1481
WALGAHN MOTORENTECHN 00810352
WALGAHN MOTORENTECHN 810352
Parameter
Flow Direction Inlet-Outlet
Inlet Diameter: 153.39 mm (6.04 inch)
Outlet Diameter: 153.39 mm (6.04 inch)
Body Diameter: Minimum 358.65 mm (14.12 inch)
Body Diameter: Maximum 536.45 mm (21.12 inch)
Body Length: 889 mm (35.00 inch)
Overall Length: 1193.8 mm (47.00 inch)
Rated Flow LR: 67.2 m³/min (2373 cfm)
Rated Flow MR: 95 m³/min (3355 cfm)
Rated Flow HR: 116.4 m³/min (4111 cfm)
Back Pressure Low-Range 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range 51 mm Hg (2.01 inch Hg)
Back Pressure High-Range 76 mm Hg (2.99 inch Hg)
Attenuation LR: 12 dBA
Attenuation HR: 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style: Style: 2
Packaged Dimensions
Packaged Length: 130.51 cm (51.38 inch)
Packaged Width: 62.87 cm (24.75 inch)
Packaged Height: 41.28 cm (16.25 inch)
Packaged Weight: 47.67 kg (105.00 lb)
Packaged Volume: 0.33 m3 (11.96 ft3)
