Description
Cross Reference
AGCO 533588D1
AGCO 563588D1
AGCO 6298086M1
AMERICAN PARTS 92731
ATLAS COPCO 5540087500
AUSTOFT 137359
BADGER 76072654
BADGER JN9086
BADGER N9086
BALDWIN BT8313
BALDWIN BT8874 MPG
BALDWIN BT8874MPG
BELL EQUIPMENT 210472
BIG A 92731
CARQUEST 85731
CASE 1346035C1
CASE 87409662
CASE 9821388
CASE A49386
CASE IA49386
CASE IH 1346035C1
CASE IH 87409662
CASE IH 9821388
CASE IH A49386
CASE IH IA49386
CASE IH J2950563
CASE IH N9086
CASE N9086
COMPAIR 262078
COMPAIR K0262078
EIMCO 69008897
EIMCO D2NP165659
FIAT 89821388
FLEETGUARD HF6587
FRAM P7084
FREIGHTLINER DNP165659
GROVE 4272820
HASTINGS HF943
HASTINGS HF945
HENGST H21WD01
HENGST HY21WD02
HIFI FILTER SH66659
JOHN DEERE AT112393
JOHN DEERE RE210857
JOHN DEERE RE43231
JURA SH66659
KOEHRING 4313265
KRESS 204196
LEROI K0262078
LOESING 020235
LUBER FINER LFH5659
MANITOWOC 4272720
MANITOWOC 427282
MANITOWOC 4272820
MANN & HUMMEL WH1257/5
MANN WH12575
MCNEILUS 3283733
MERCEDES BENZ DNP165659
NAPA 1731
NEW HOLLAND 83972274
NEW HOLLAND 89821388
NEW HOLLAND V109289
OMARK MATERIAL HANDLING 24635002
OSHKOSH 3283733
PARKER PERI 659
POCLAIN J2950563
PPM W2750590
PUROLATOR H55026
SAKURA HC5506
SCHUPP SPH12525
THOMAS EQUIPMENT 43541
TIMBERJACK 4313265
TIMBERJACK 841649500
TROJAN 462359200
TWIN DISC 1016502
TWIN DISC P165659
VERSATILE 109289
VERSATILE V109289
VMC HF165659
WAGNER MINING 5540087500
WALGAHN MOTOREN 00811015
WESTERN EM502B3R20
WESTERN STAR DNP165659
WIX 51731
WIX 551730
WIX 731

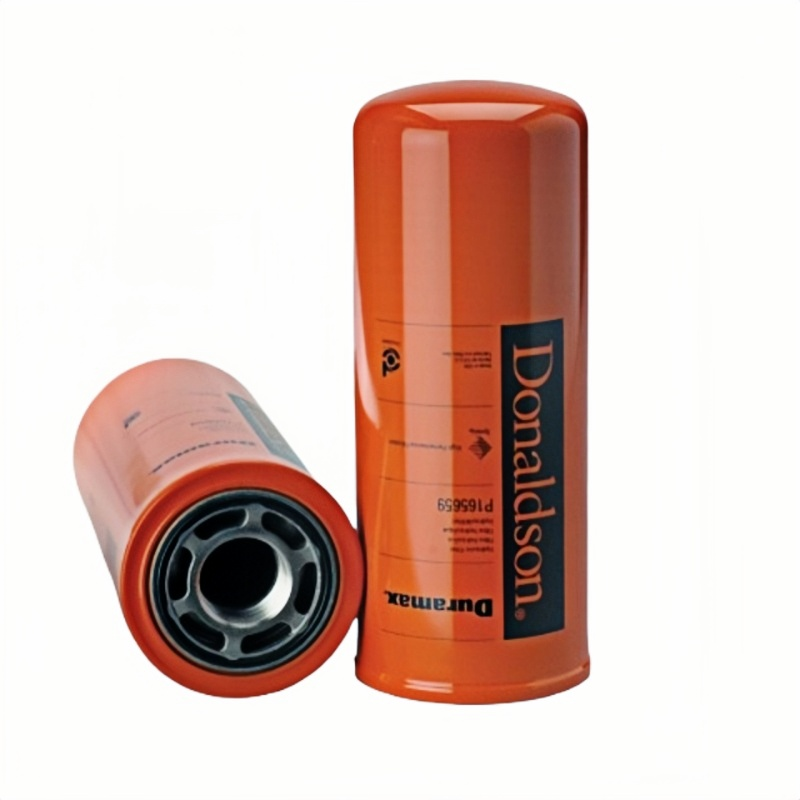

Parameter
Seal Material Nitrile
Outer Diameter: 121 mm (4.76 inch)
THR:ead Size: 1 3/4-12 UN
Length: 295.4 mm (11.63 inch)
Gasket OD 86 mm (3.39 inch)
Gasket ID 79 mm (3.11 inch)
Efficiency Beta 2 4 micron
Efficiency Beta 1000 11 micron
Flow Direction Standard
Style: Spin-On
Series HMK05/25
Brand: Duramax®
Media Type: Synteq XP
Primary Application CASE/CASE IH N9086
Packaged Dimensions
Packaged Length: 13.72 cm (5.40 inch)
Packaged Width: 13.72 cm (5.40 inch)
Packaged Height: 31.50 cm (12.40 inch)
Packaged Weight: 2.00 kg (4.40 lb)
Packaged Volume: 0.01 m3 (0.21 ft3)
