Description
Cross Reference
ALCO FILTERS SP1303
BALDWIN BT9318
BOSCH 451103330
CARQUEST 84159
DIESEL TECHNIC 114421

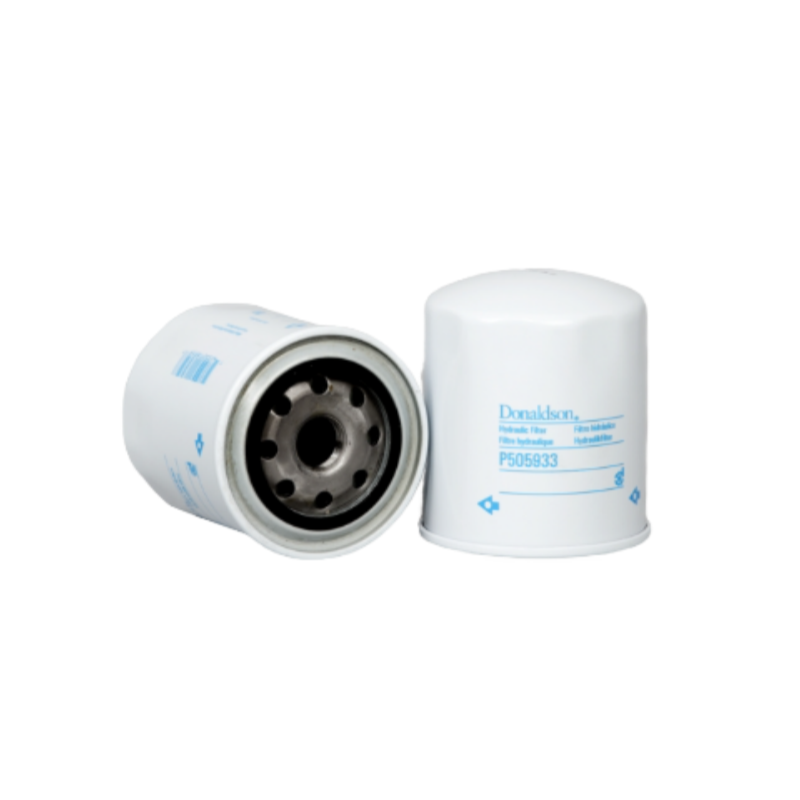

DONALDSON P505933
DONALDSON P761108
EXMAN HC40060
EXMAN SFH1696
FILTRON OP668
FLEETGUARD HF7535
FLEETRITE HFR87535
FRAM PH8798
GRAINGER 4ZNG1
GUD Z638
HENGST H24W05
HIFI FILTER SH55696
KLOBI KL305
KNECHT HC113
LUBER FINER LFH8095
MAHLE HC113
MANN & HUMMEL W9023/1
MANN W9023
MANN W90231
MANN W93014
PARKER RH 343 10B
RACOR LFSTF1006RE
SAKURA HC7910
SAKURA HC7920
SCANIA 1301696
SCANIA 1768402
SCANIA 2002705
SF FILTER SPH9696
SOGEFI FT5433
SURE SFH1696
UFI 8005900
WIX 557159
WIX 57159
WIX 92017E
Parameter
Outer Diameter: 96 mm (3.78 inch)
THR:ead Size: M23 x 1.5
Length: 115 mm (4.53 inch)
Gasket OD 71.8 mm (2.83 inch)
Gasket ID 62.5 mm (2.46 inch)
Efficiency Beta 2 17 micron
Efficiency Beta 20 30 micron
Efficiency Beta 75 35 micron
Efficiency Test Std: JIS D 1611
Bypass Valve Yes
Bypass Valve Setting LR: 2 bar (29 psi)
Collapse Burst 6.9 bar (100 psi)
Style: Spin-On
Media Type: Cellulose
Packaged Dimensions
Packaged Length: 9.91 cm (3.90 inch)
Packaged Width: 9.91 cm (3.90 inch)
Packaged Height: 12.57 cm (4.95 inch)
Packaged Weight: 0.68 kg (1.51 lb)
Packaged Volume: 0.00 m3 (0.08 ft3)
