Description
Cross Reference
BALDWIN BF1296O
BALDWIN BF1346
BALDWIN BF1346O
BALDWIN BF1346SP
BALDWIN BF1347
BALDWIN WBF219B1
BIG A 95412
CARRIER TRANSICOLD 300109004
CHINA LOCAL 13050733
CHINA LOCAL HG1500080146
DOOSAN 40040300022
DOOSAN K1006520 Use with P569758
DOOSAN K1006530
FILTRON PP9672
FLEETGUARD FS1291
FLEETGUARD FS19538
FLEETGUARD FS19593
FLEETGUARD FS19798
FLEETGUARD FS19845
FLEETGUARD FS19847
FLEETGUARD FS19907
FLEETGUARD FS19931
FLEETGUARD FS19932
FLEETGUARD FS19933
FRAM PS11143
FREIGHTLINER 324957001
FREIGHTLINER ABPS3226FL02
Freightliner 324957001
Freightliner ABPS3226FL02
GUD Z397
HENGST H304WK
HIFI FILTER SN922610B
HYUNDAI 319457L002
INTERNATIONAL 1685159C91
KOLBENSCHMIDT 4634 FS
KOLBENSCHMIDT 50014634
LIUGONG SP188108
LUBER FINER LFF5851U
MACK PS9794
MAHINDRA 7306AAP00040N
MANN PL2707X
MANN PL270X
VMC FS550554
WEICHAI 1000700908
WIX 33047
WIX 33412
WIX 33812
WIX 33813
WIX 533812
WIX 553812
WIX 95149E
WIX SF10016
WIX WF10017
Parameter
Outer Diameter: 107.3 mm (4.22 inch)
THR:ead Size: 1-14 UN
Length: 173.1 mm (6.81 inch)
Gasket OD 99 mm (3.90 inch)
Gasket ID 90.3 mm (3.56 inch)
Efficiency 99% 10 micron
Efficiency Test Std: SAE J1488, J1985
Emulsified H2O Efficiency 95 Percent
Collapse Burst 6.9 bar (100 psi)

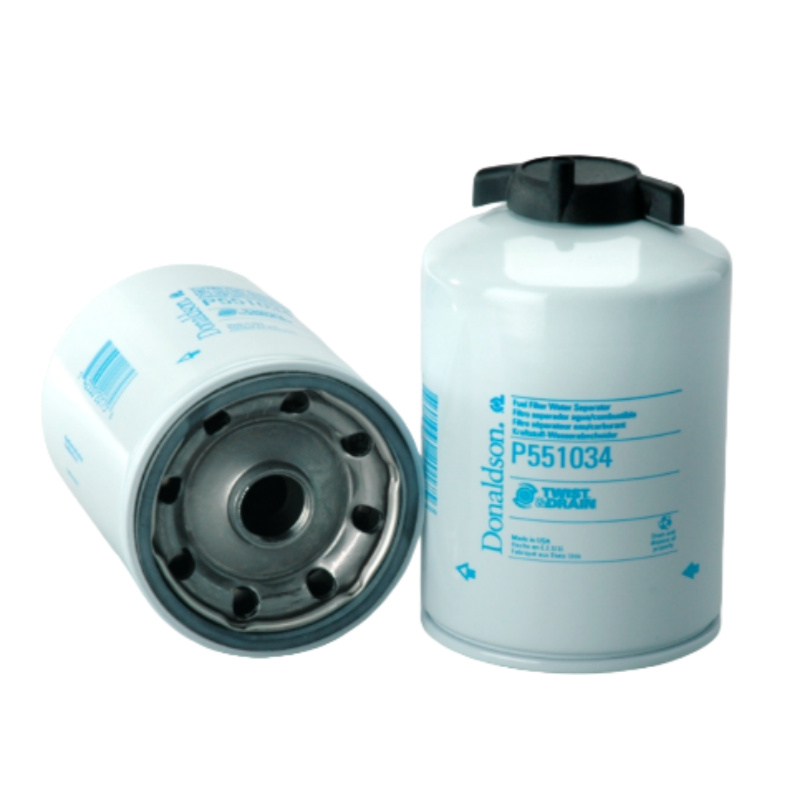

Type: Water Separator
Style: Spin-On
Brand: Twist&Drain™
Media Type: Cellulose
Primary Application RACOR S3226T
Notes Not for Marine Applications
Packaged Dimensions
Packaged Length: 10.67 cm (4.20 inch)
Packaged Width: 10.67 cm (4.20 inch)
Packaged Height: 17.78 cm (7.00 inch)
Packaged Weight: 0.81 kg (1.78 lb)
Packaged Volume: 0.00 m3 (0.07 ft3)
