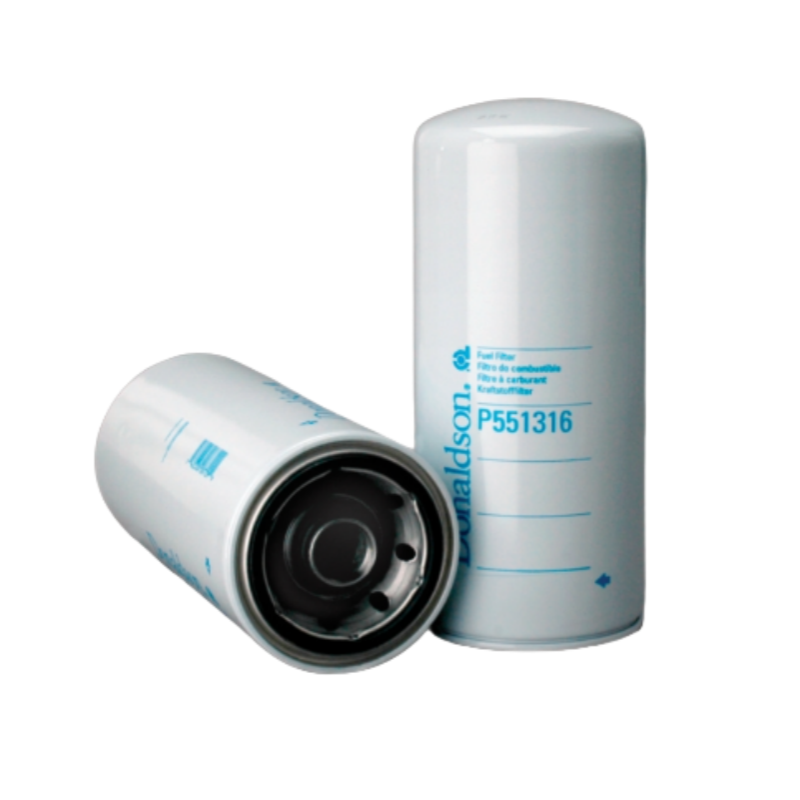

Description
Blue version DBF5810
Cross Reference
BALDWIN BF7639
BIG A 95685
BUCYRUS V013569
CARQUEST 86685
CATERPILLAR 1R0755
CATERPILLAR 3890433
CHINA LOCAL STCX020
EPIROC 2657899379
FLEETGUARD FF5317
FRAM P8430
HASTINGS FF1090
HENGST H675WK
HIFI FILTER SN55424
KRALINATOR F498
LUBER FINER LFF4102
MANN WK14001
SAKURA FC5510
SANDVIK 016641061
SANDVIK 061141061
SANDVIK 61141061
SURE FILTER SFF1316
TIM 1R0755
VMC FF551316
WEICHAI 1000104483
WEICHAI 1001421244
WEICHAI 1003297630
WEICHAI 1003877744
WEICHAI 1004300450
WEICHAI 1008088046
WIRTGEN 2110145
WIX 33685
Parameter
Outer Diameter: 135.2 mm (5.32 inch)
THR:ead Size: 1 3/8-16 UN
Length: 308 mm (12.13 inch)
Gasket OD 110.5 mm (4.35 inch)
Gasket ID 100.3 mm (3.95 inch)
Efficiency 99% 4 micron
Efficiency 99.9% 5 micron
Efficiency Test Std: SAE J1858
Flow Direction Standard
Collapse Burst 10.3 bar (149 psi)
Style: Spin-On
Media Type: Cellulose
Primary Application CATERPILLAR 1R0755
Packaged Dimensions
Packaged Length: 13.41 cm (5.28 inch)
Packaged Width: 13.41 cm (5.28 inch)
Packaged Height: 32.00 cm (12.60 inch)
Packaged Weight: 1.83 kg (4.04 lb)
Packaged Volume: 0.01 m3 (0.20 ft3)
