Description

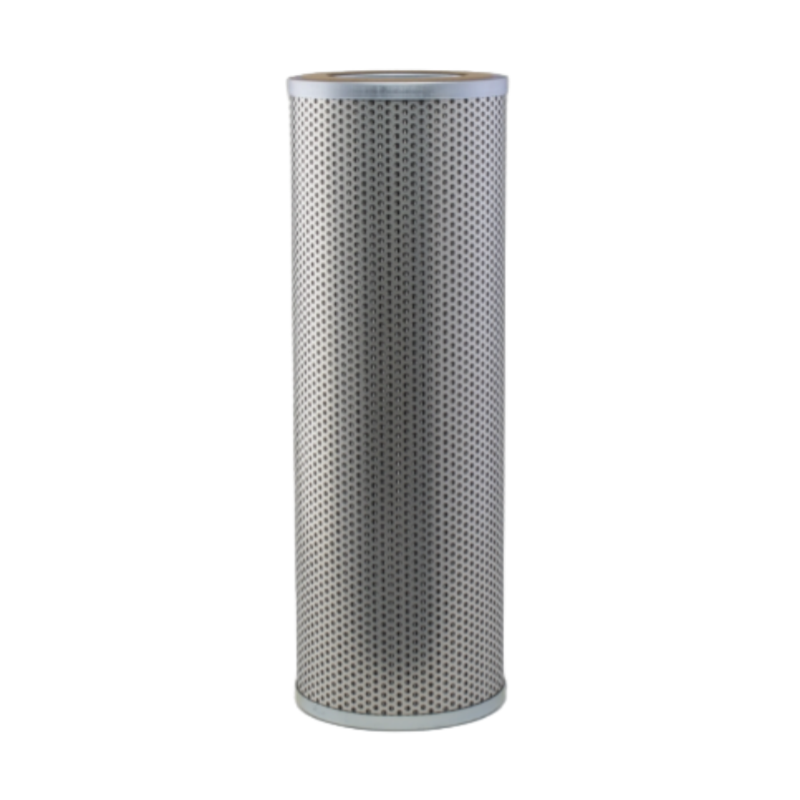

Replacement P566189
Cross Reference
CATERPILLAR 19221560
DONALDSON P165449
DONALDSON P566190
HIFI FILTER SH66262
SF FILTER HY12749
WIX R10F10G
Parameter
Seal Material Nitrile/Cellulose
Outer Diameter: 189.1 mm (7.44 inch)
Inner Diameter: 123.44 mm (4.86 inch)
Length: 558.8 mm (22 inch)
Efficiency Beta 1000 12 micron
Collapse Burst 6.9 bar (100 psi)
Style: Cartridge
Series HR:K10
Media Type: Synthetic
Packaged Dimensions
Packaged Length: 22.35 cm (8.80 inch)
Packaged Width: 22.10 cm (8.70 inch)
Packaged Height: 63.25 cm (24.90 inch)
Packaged Weight: 6.17 kg (13.58 lb)
Packaged Volume: 0.03 m3 (1.10 ft3)
