Description
Cross Reference
ARGO 7234577 P566247 standard capacity；P566257 high capacity
ARGO 7234578 P566247 standard capacity；P566256 high capacity
ARGO 7242023 P566247 standard capacity；P566256 high capacity
ARGO 7242024 P566247 standard capacity；P566256 high capacity
ARGO 7242531 P566247 standard capacity；P566256 high capacity
BALDWIN H8014
BOSCH REXROTH R928016696
BOSCH REXROTH R928016708
DENISON DE0410B3U10
DENISON DE0410V3U10
DENISON DE0411B8C10
DENISON DE0411V8C10
DIAGNETICS LPG539B12
DIAGNETICS LPG539V12
DIAGNETICS LPH539B12
DIAGNETICS LPH539V12
DONALDSON DT83003914UM
DONALDSON P164565
DONALDSON P171045
DONALDSON P566247
EPE 168300XH10SLS000P
EPE 168300XH10XLS000M
EPE 168300XH10XLS000P
EPPENSTEINER 168300H10LL981XP
EPPENSTEINER 168300XH10SLS000P
EPPENSTEINER 168300XH10SLS000V
EPPENSTEINER 168300XH10XLS000M
EPPENSTEINER 168300XH10XLS000V
FINN FILTER FC1303Q010BS
FLEETGUARD HF30340
FLEETGUARD HF7010
FPS FPD0201008
HIFI FILTER SH57060
HIFI FILTER SH87030
HIFI FILTER SH93094
HILCO 386011009C
HILCO 386011023C
HILCO PH73901CG standard capacity；P566256 high capacity
HILCO PH73901CGV standard capacity；P566256 high capacity
HILCO PH73911CG standard capacity；P566256 high capacity
HYCON H830039010BN
HYDAC 10639D10BN
HYDAC 10639D12BN
HYDAC H830039012BN
INTERNORMEN 0583001220010BP39
INTERNORMEN 301056
LUBER FINER LH4565
MP FILTRI CU9503A10AN
MP FILTRI CU9503A10N
PALL HC8300FCS39H
PALL HC8300FDS39H
PALL HC8300FKS39H
PALL HC8300FUS39H
PARKER 927946
PARKER 932148
PARKER 932874Q
PARKER G03459
PARKER GO3459
PARKER PR3459Q
PRO FILTERS DH5538
PTI P83250KFB
PTI P83250KFV
SCHROEDER 39QS7
SCHROEDER 39QZ10
SCHROEDER 39QZ7
SF FILTER HY19009
SF FILTER HY20208
SOFRANCE CD00196A
SWIFT SF83003912UM
SWIFT SF83003912UMV
UNIFLUX FILTERS XH624
VICKERS V0411B8C10
VICKERS V0411B8V10
VICKERS V0411V8C10
VICKERS V0411V8V10
WISMET WHE30657
WIX 51294

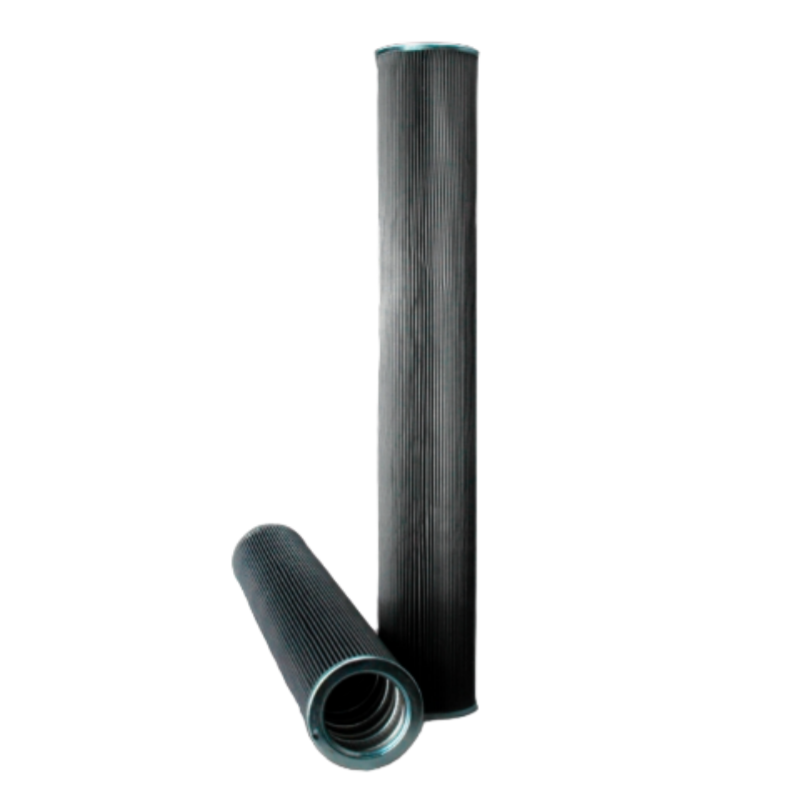

Parameter
Seal Material Viton
Outer Diameter: 151.4 mm (5.96 inch)
Inner Diameter: 103.9 mm (4.09 inch)
Length: 981.7 mm (38.65 inch)
Efficiency Beta 1000 12 micron
Collapse Burst 10.3 bar (149 psi)
Flow Direction Outside-In
Style: Cartridge
Series W041
Brand: DT High-Performance
Media Type: Synthetic
Packaged Dimensions
Packaged Length: 18.03 cm (7.10 inch)
Packaged Width: 18.03 cm (7.10 inch)
Packaged Height: 103.63 cm (40.80 inch)
Packaged Weight: 6.44 kg (14.18 lb)
Packaged Volume: 0.03 m3 (1.19 ft3)
